Apogee Element 88 - 16x16 Thunderbolt Audio Interface for Mac

Apogee Element 88 - 16x16 Thunderbolt Audio Interface for Mac

---

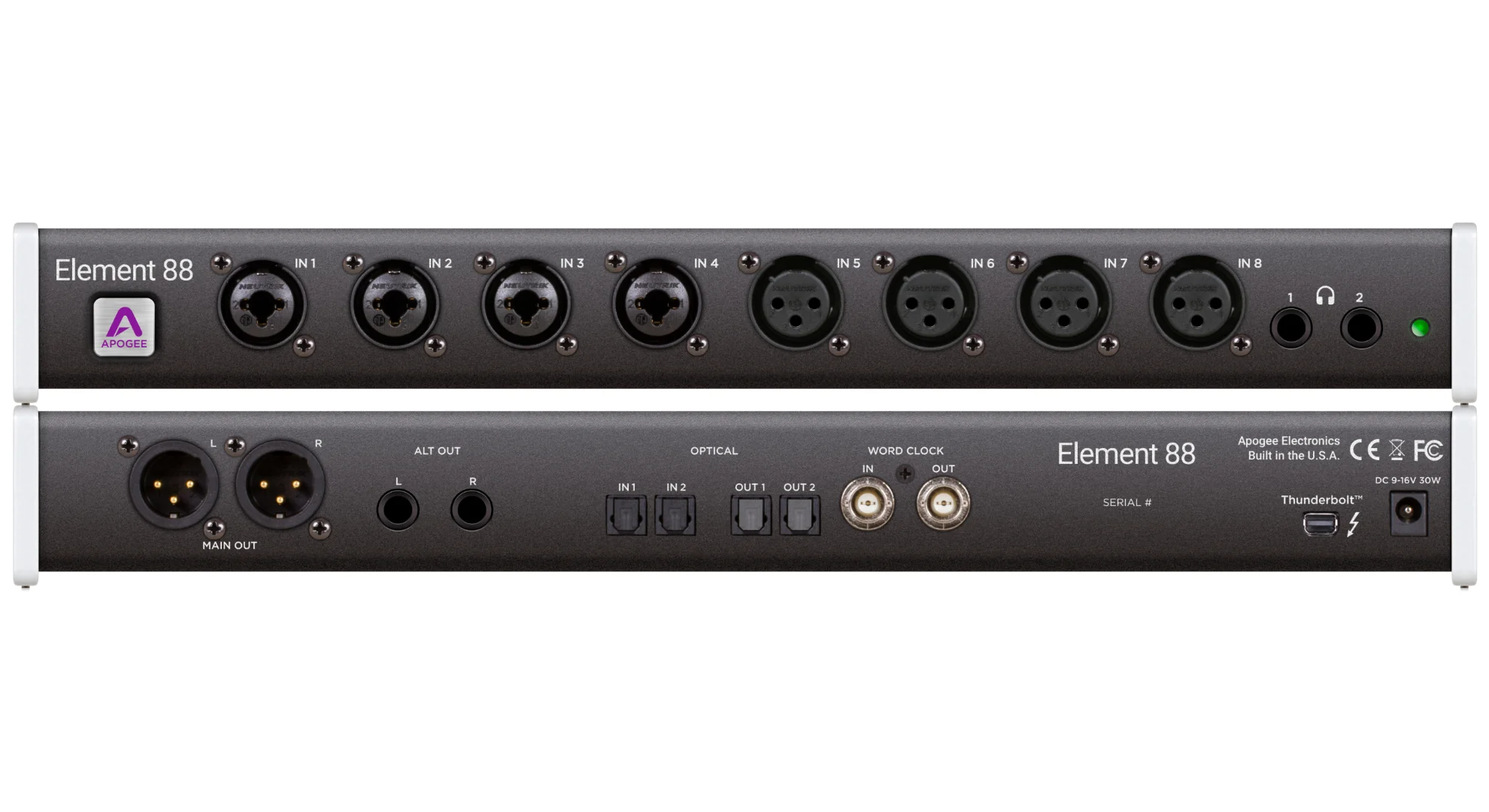

If you record music to a Mac, the Apogee Element 88 is for you. The Element 88 is a 16-in/16-out audio interface that takes the best of cutting-edge Apogee gear and packs it into a streamlined, cost-effective unit. The Element 88 gives you eight balanced front-panel analog inputs, two rear-panel XLR outputs plus two balanced 1/4" outputs, two stereo headphone outs, and word clock I/O. Eight of Apogee's world-class mic preamps are onboard, with selectable phantom power. For expansion flexibility, optical I/O is also provided with ADAT (8 x 8), SMUX (8 x 8), and S/PDIF (2 x 2) compatibility. Apogee's Element Control software gives you remote control of your hardware on your Mac and wireless control via iPhone, iPad, or iPod touch.

---

FEATURES

• 16-in/16-out Thunderbolt audio interface for Mac computers
• Up to 24-bit/192kHz AD/DA conversion for recording
• 4 front-panel mic/line/instrument inputs on combi connectors
• 4 front-panel mic/line inputs on XLR connectors
• 8 world-class Apogee mic preamps, selectable phantom power
• 8 analog outputs: 2 balanced rear-panel XLR outputs and 2 balanced 1/4" outputs
• 2 x 1/4" stereo headphone outputs
• Single-port Thunderbolt connectivity with 1.41ms round-trip latency at 96kHz (with buffer setting 32)
• Optical In — supports ADAT, SMUX, and S/PDIF: ADAT — 8 channels, 44.1kHz-48kHz on 1 TOSlink connector; SMUX — 8 channels, 88.2kHz-96kHz on 2 TOSlink connectors; S/PDIF — 2 channels, up to 192kHz on 1 TOSlink connector
• Optical Out — supports ADAT, SMUX, and S/PDIF: ADAT — 8 channels, 44.1kHz-48kHz on 1 TOSlink connector; SMUX — 8 channels, 88.2kHz-96kHz on 2 TOSlink connectors; S/PDIF — 2 channels, up to 192kHz on 1 TOSlink connector
• Word clock I/O (BNC connectors) for sync with other digital audio gear
• Element Control Software for Mac provides control of hardware parameters, including Input gain, Output level, and low-latency monitoring
• Element Control Mobile App for wireless remote control via iPhone, iPad, or iPod touch
• Compatible with optional Apogee Control hardware remote control
• Multi-unit Thunderbolt support for connection of any 2 Element units to your Mac
• Connect any Element-series interface to your Ensemble Thunderbolt for Ensemble-quality I/O at an incredible price
• Direct monitoring feature in Logic Pro X eliminates recording latency

---

SPECIFICATIONS

• Computer Connectivity:Thunderbolt
• Form Factor:Desktop, Rackmount
• Simultaneous I/O:16 x 16
• A/D Resolution:24-bit, up to 192kHz
• Number of Preamps:8
• Phantom Power:8 channels
• Analog Inputs:4 x XLR-1/4" combo, 4 x XLR
• Analog Outputs:2 x XLR (main out), 2 x 1/4" (alt out)
• Digital Inputs:2 x Optical (ADAT, SMUX, S/PDIF)
• Digital Outputs:2 x Optical (ADAT, SMUX, S/PDIF)
• Headphones:2 x 1/4"
• Clock I/O:In/Out
• OS Requirements - Mac:OS X 10.10 or later (Element Control Software), iOS compatible (Element Control App)
• Rack Spaces:1U (with provided rack ears)
• Height:1.75"
• Width:13.5"
• Depth:5.5"
• Weight:3.5 lbs.

---
