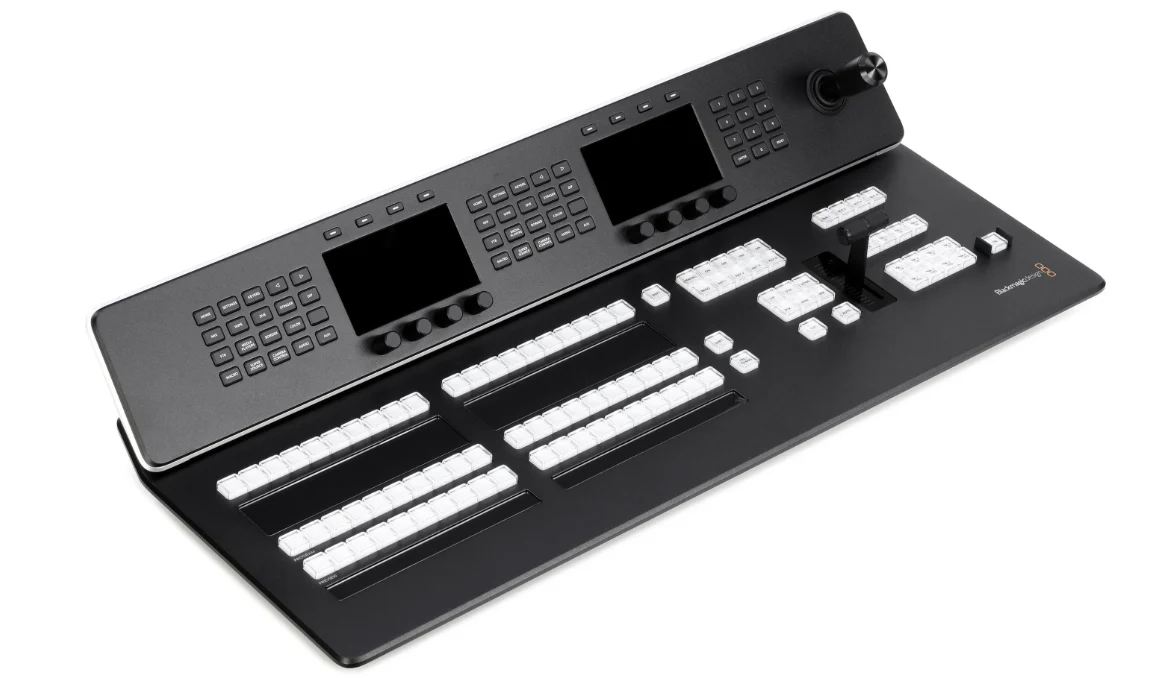

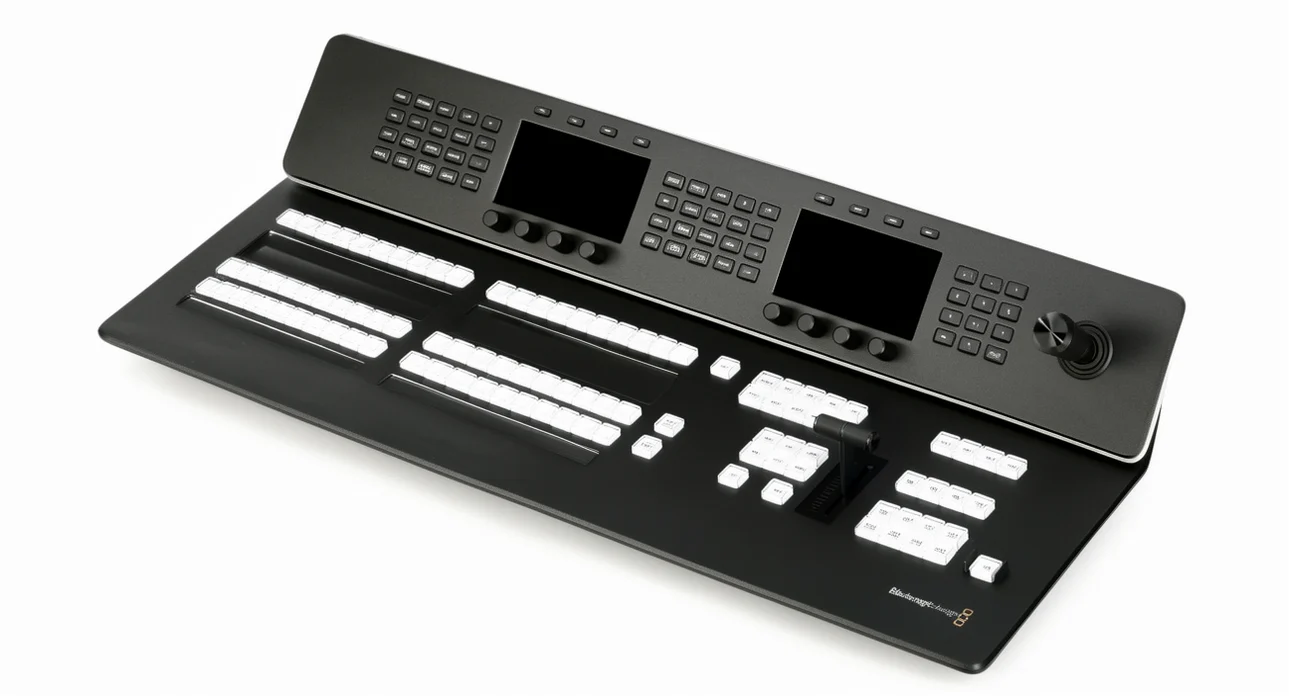

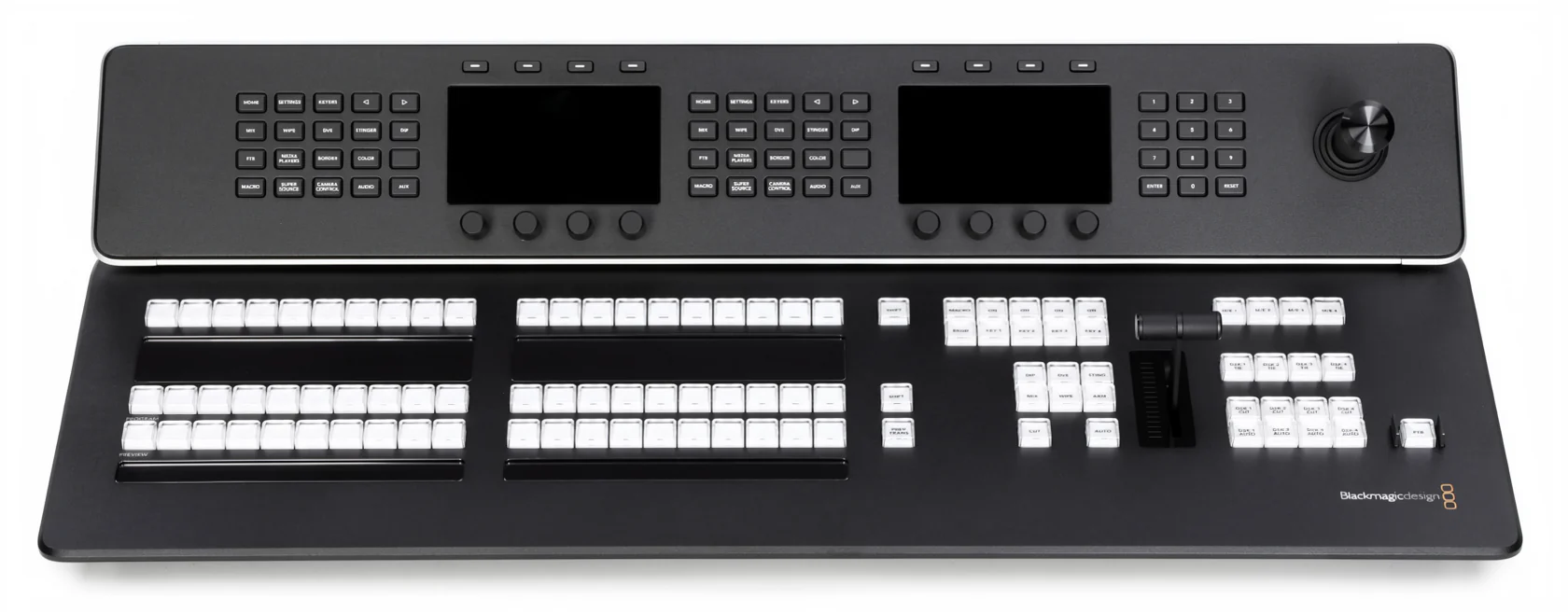

Blackmagic Design ATEM 1 M/E Advanced Panel 20 Video Switching Controller

Blackmagic Design ATEM 1 M/E Advanced Panel 20 Video Switching Controller

---

From sporting events and theater productions to the most impressive live concerts, Blackmagic Design’s ATEM 1 M/E Advanced Panel 20 is brimming with cutting-edge features to expedite and streamline superlative, multicamera video playback. Seamlessly swap between SD, HD, and Ultra HD, capable of handling even the largest high-resolution LED screens. Its 3-axis joystick and precisely weighted T-bar are paired with ergonomic keys designed to minimize error, as well as a dynamic LCD display. Assignable macros and customizable, tri-color keys provide real-time visual feedback that can be tailored to your needs, optimizing your navigation of DVE and up to 20 inputs. Video experts at Music Bliss laud the combination of PoE-capable Ethernet ports and multi-voltage power supplies, letting you take your ATEM 1 M/E Advanced Panel 20 worldwide, operated with your computer of choice!

---

FEATURES

• Switching controller manages DVE, audio, Chroma Key, SuperSource, and more

• Reliably connect and control multi-camera setups at nearly any resolution, including SD, 720p HD, 1080i HD, 1080p HD, and Ultra HD

• Advanced controls accommodate up to 20 inputs for the most comprehensive and complete performances

• Ergonomic button designs include curved surfaces to prevent unintended action

• Customizable arrangement allows you tailor button labels and displays to more accurately represent your project

• Smoothly weighted T-bar and responsive 3-axis joystick ensure precise control over DVE and camera motion

• Shift functionality keeps worksurface clear without compromising input management

• Tri-color buttons provide real-time feedback as you work

• 4 Ethernet ports deliver unmatched control via PoE to work with your setup

---

SPECIFICATIONS

• Type : ATEM 1 M/E Advanced Video Switching Panel

• Channels : 20-input

• USB : 1 x USB-C

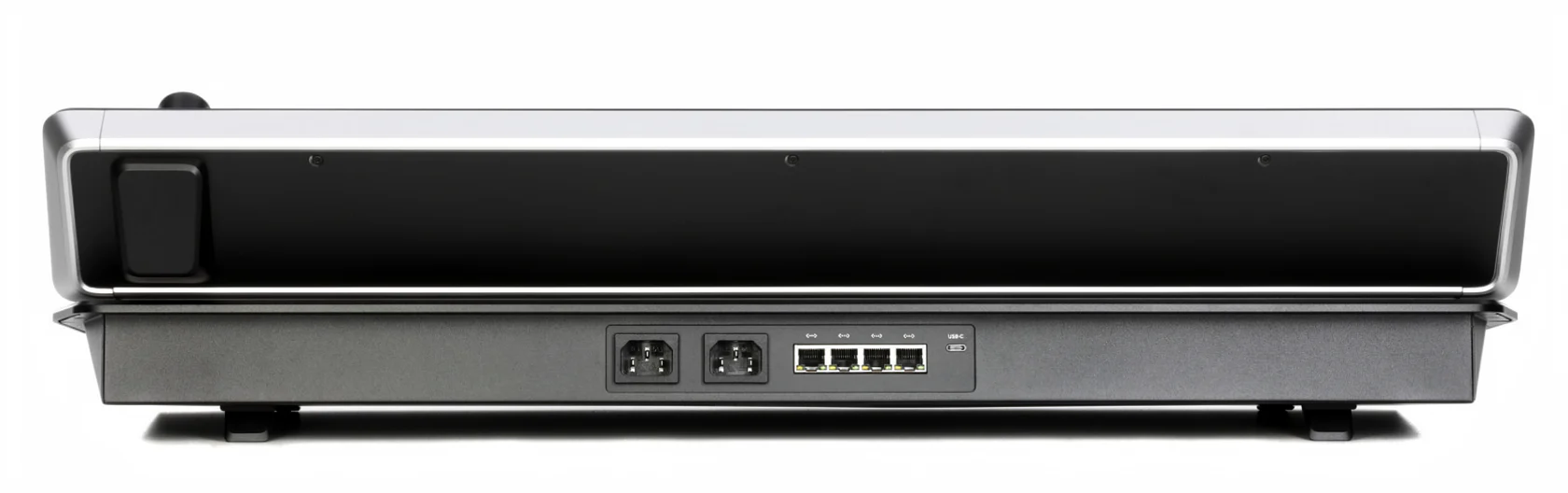

• Other I/O : 4 x RJ-45 (10/100/1000Base-T)

• Software : ATEM Software Control Panel

• Features : 2 x Independent LCD Displays

• Power Source : 2 x Standard IEC AC Inputs

• Height : 5.63"

• Width : 28.4"

• Depth : 12.5"

• Weight : 19.2 lbs

---
