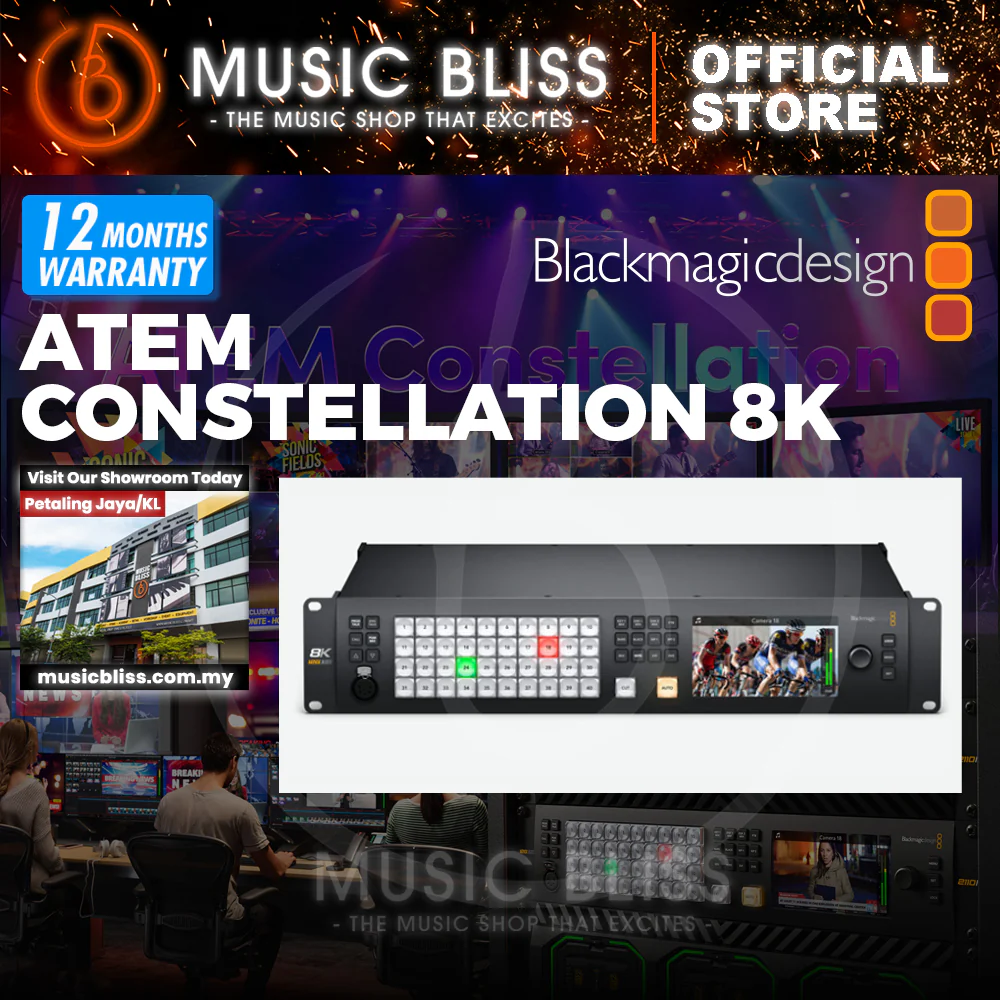

Blackmagic Design ATEM Constellation 8K Ultra HD Video Switcher

Blackmagic Design ATEM Constellation 8K Ultra HD Video Switcher

---

Searching for a powerful 8K video switcher for massive live productions? If that's the case, the Blackmagic Design ATEM Constellation 8K checks all the right boxes. This feature-laden Ultra HD video switcher gives you 40 12G-SDI inputs and 24 12G-SDI outputs, plus balanced audio, Ethernet, RS‑422 control, and MADI digital audio inputs to the unit's internal 156-channel Fairlight audio mixer. You also get four M/Es, four DVEs, 16 keyers, four media players, four multi-viewers, two SuperSource, and standards conversion on every SDI input. You can take command using the ATEM Constellation 8K's front panel, which includes an easy-to-read LCD screen, or you can add an external hardware controller or deploy the free ATEM Software Control app. Built-in talkback is also included. To top it off, the ATEM Constellation 8K runs quietly and economically, thanks to its high-efficiency thermal system and low-speed cooling fans.

---

FEATURES

• 40 independent 12G-SDI inputs and 24 independently routable, fully customizable 12G-SDI outputs

• Balanced audio, Ethernet, RS‑422 control, and MADI digital audio inputs

• 4 M/Es, 4 DVEs, 16 keyers, 4 media players, 4 multi-viewers, 2 SuperSource

• Standards conversion on every SDI input upscales any format to 8K

• Route any external SDI input and all internal sources to any SDI outputs

• Outputs contain embedded program audio, mix minus support, RP‑188 time code, SDI camera control, and more

• Front panel gives you incredible power with PGM/PVW or cut-bus-style operation

• Front-panel command over transitions, upstream/downstream keyers, media players, and fade to black

• Built-in talkback right from the front panel

• Compatible with the full gamut of Blackmagic's hardware control panels

---

SPECIFICATIONS

• Type : 8K Live Production Switcher

• Channels : 40 Video, 34 Stereo Audio

• Video Format : 8K

• Video Inputs : 40 x BNC (8K-SDI)

• Video Outputs : 24 x BNC (8K-SDI), 4 x BNC (multi view)

• Audio Inputs : 2 x 1/4" TRS (CH1, CH2), 1 x BNC (MADI)

• Audio Outputs : 2 x 1/4" TRS (CH1, CH2), 2 x BNC (MADI)

• Sync : 1 x BNC (reference in)

• Headphones : 1 x 5-pin XLR (talkback)

• USB : 1 x Type-B (2.0)

• Other I/O : 1 x RJ45 (control), 1 x RJ45 (talkback), 1 x RJ12 (remote, supports RS-422)

• Software : ATEM Software Control Panel

• Power Source : 2 x Standard IEC AC

• Height : 3.54 (2U)

• Width : 19"

• Depth : 13.23"

• Weight : 18.52 lbs.

---
