Blackmagic Design ATEM Monitoring Rack Panel 20 Video Switching Controller

Blackmagic Design ATEM Monitoring Rack Panel 20 Video Switching Controller

---

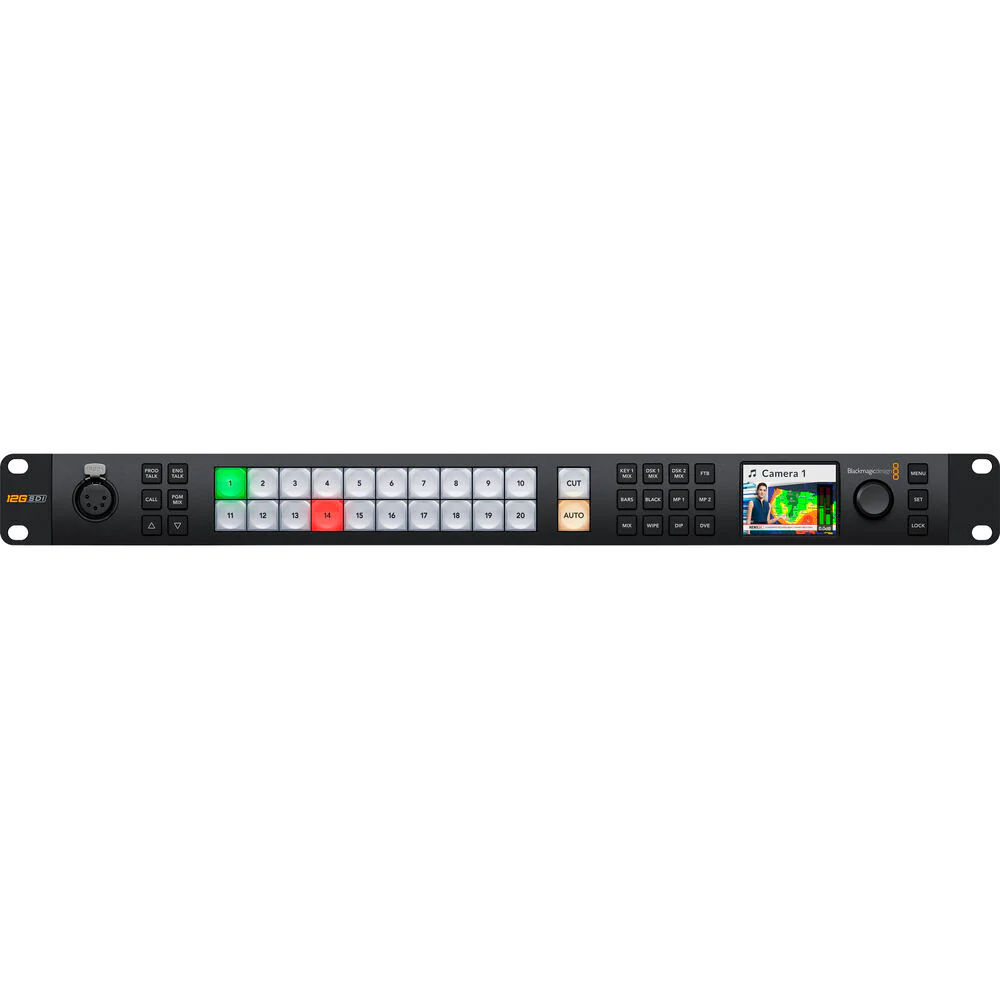

Monitor your SMPTE 2110 IP video using SDI and HDMI monitors with the ATEM Monitoring Rack Panel 20 from Blackmagic Design. This video converter comes in a 1 RU form factor that looks like an ATEM switcher, but its basic use is a video converter for monitoring your SMPTE 2110 IP streams on dual 12G-SDI and HDMI monitors. It features 10G Ethernet ports to source your SMPTE 2110 video on redundant networks, 20 backlit front buttons for easy control, redundant power, a front LCD, a talkback connection, and a 1G Ethernet port that allows control via LAN.

---

FEATURES

• Video Converter for Monitoring

• Redundant 10G SMPTE 2110 Ethernet Input

• Converts to 12G-SDI & HDMI Monitor Out

• 1 RU Form Factor, 20 Backlit Buttons

• 1G Control Connector, Redundant Power

• Supports Talkback Audio Channel

---

SPECIFICATIONS

• Buttons : 22 x LED Backlit | 8 x Source | 4 x Transition | 6 x Talkback and Mix

• Rack Unit : 1 RU

• Color : 10-Bit, 4:2:2

• Video Formats : UHD 4K 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 | HD 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 | HD 1920 x 1080i: 60, 59.94, 50
  1280 x 720p: 60, 59.94, 50

• Video Standard Compliance : SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7


---
