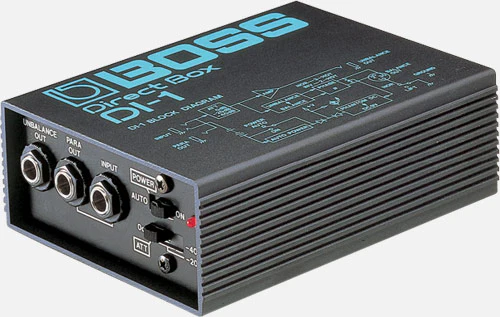

Boss DI-1 Direct Box

Boss DI-1 Direct Box (DI1)

---

The DI-1 is a high-quality direct box with crystal-clear sound for transforming high-impedance, unbalanced instrument outputs to the low-impedance, balanced inputs of a mixing console.

---

FEATURES

• Active direct box with superior frequency responce to conventional transformers
• Operates on a 9-volt battery or phantom power from a mixer
• Phase reversal and ground lifting switches
• Three input level switches
• Sturdy, compact design

---

SPECIFICATIONS

• Frequency Response : 20 Hz to 40 kHz (+0.5/-1 dB)
• Nominal Input Level : -20/0/+20 dBu (selectable)
• Max. Input Level : +45 dBu (1 kHz), 390 Vp-p
• Max. Output Level : +8 dBu (Balanced: 600 ohms load, Unbalanced: 50 k ohms)
• Residual Noise : -110 dBu or less (IHF-A)
• Total Harmonic Distortion : 0.05 % or less
• Power Supply : DC 9 V: Dry Battery (6F22/6LR61 type), or
• Phantom Power : DC 24 V to DC 48 V
• Current Draw : 6 mA
• Width : 97 mm 3-13/16 inches
• Depth : 125 mm 4-15/16 inches
• Height : 46 mm 1-13/16 inches
• Weight : 480 g

---
