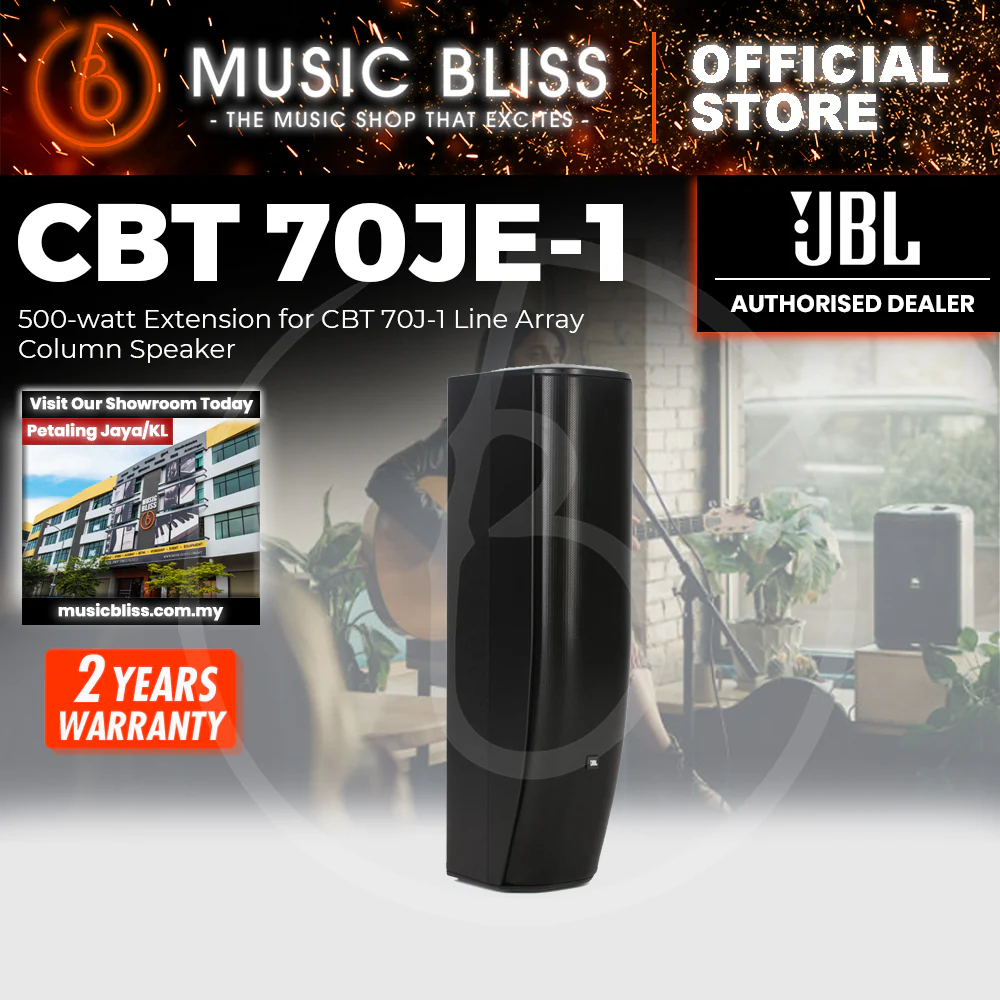

JBL CBT 70JE-1 Extension for CBT 70J-1 - Black (CBT70JE1)
The JBL CBT 70JE-1 extends your CBT 70J-1 line array column speaker with four 5" woofers, yielding chest-thumping low-end down to 45Hz. These high-power low-frequency drivers feature dual-magnet neodymium motors with 1.5" diameter voice coils that provide top-shelf sound reproduction with minimum distortion. This extension cabinet includes a built-in crossover that's purpose-built for a CBT 70J-1 + 70JE-1 system, ensuring an optimal balance of frequencies. The CBT 70JE-1 is housed in a durable fiberglass-reinforced ABS enclosure with a heavy-duty aluminum grill.
FEATURES
- Extends your CBT 70J-1 line array column speaker (sold separately) with four 5" low-frequency drivers
- Yields chest-thumping low-end down to 45Hz
- Dual-magnet neodymium motors with 1.5" diameter voice coils provide top-shelf sound reproduction with minimum distortion
- 0.63" long coils provides high linear drive and high power handling in a compact driver
- Drivers feature the same damped blended surrounds and coated sealed paper cones found in high-performance large-format drivers
- Built-in crossover that's purpose-built for a CBT 70J-1 + 70JE-1 system
- Drivers boast coated diaphragm materials to provide moisture, UV, and salt resistance
- Durable fiberglass-reinforced ABS enclosure with a heavy-duty aluminum grill
SPECIFICATIONS
- Powered:No
- Speaker Size:4 x 5" Neodymium woofer
- Power Rating:500W (2 hours), 350W (100 hours)
- Peak Power Capacity:1400W (100 hours)
- Impedance:8 ohms
- Inputs:1 x Dual Bare Wire terminals
- Frequency Range:45Hz-700Hz
- Maximum Peak SPL:117 dB SPL
- Enclosure Material:Fiberglass reinforced ABS cabinet, powder coated black 1050 aluminum grille
- Mounting Options:10 x M6 Mounting Points
- Height:27.3"
- Width:6.69"
- Depth:9.32"
- Weight:18 lbs.
