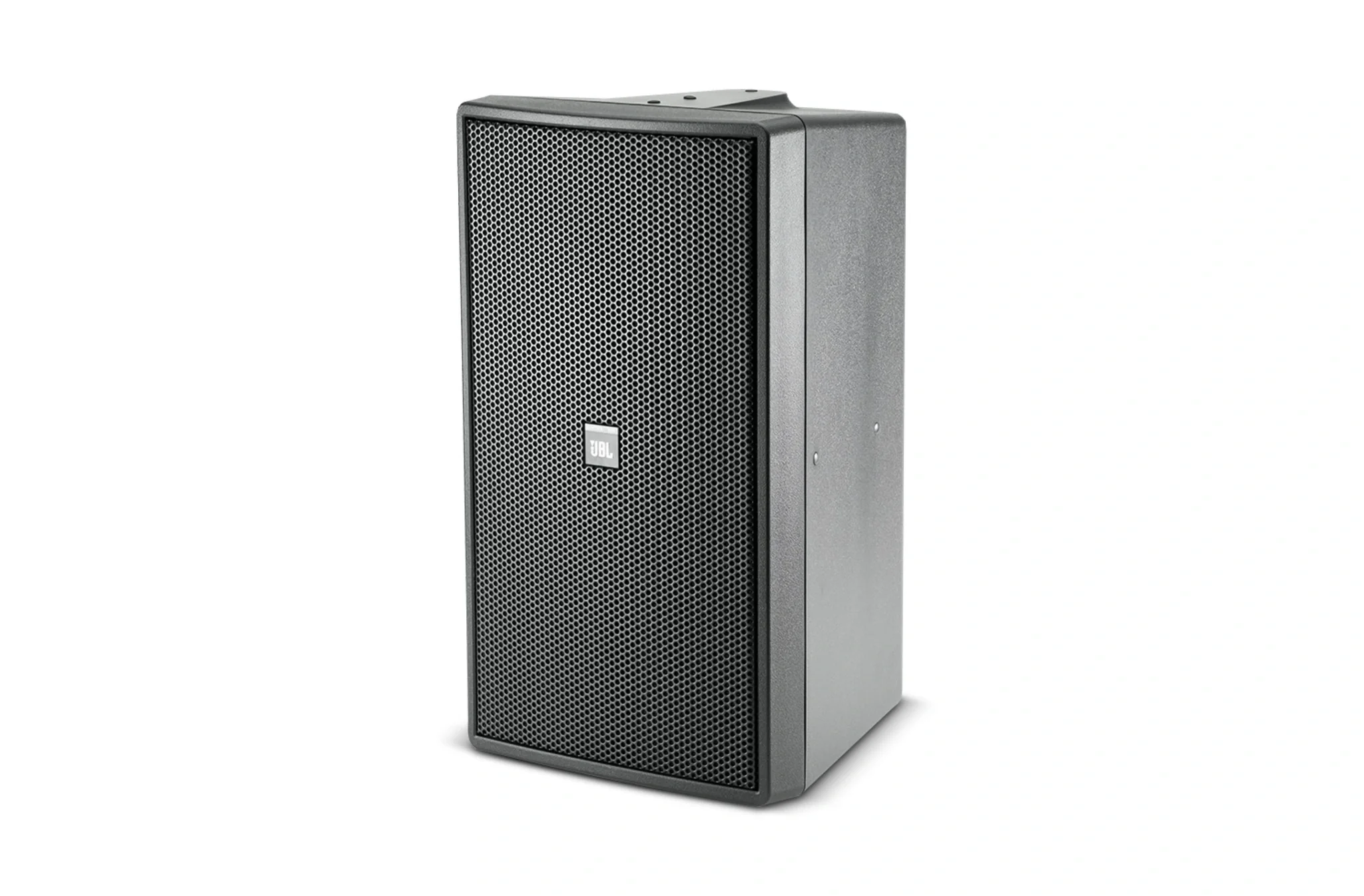

JBL Control 29AV-1 300W 8 inch Indoor/Outdoor Speaker - Black (Control29AV1)
The JBL Control 29AV offers up an excellent mid-sized loudspeaker solution - perfect for when you need a decent-sized full range speaker, but something that's not quite as large as many installed-speaker solutions. The 2-way Control 29AV is designed for indoor/outdoor use and features an 8" woofer with a weather-resistant kevlar cone and a 1-inch compression driver. A rotatable high-frequency horn lets you use the Control 29AV in both horizontal and vertical positions. InvisiBall mounting hardware is included with each JBL Control 29AV.
FEATURES
- Extended bandwidth, extremely smooth frequency response.
- 110-degree x 85-degree HF coverage, rotatable horn.
- 110-watt transformer for 70V or 100V lines, with 8 ohm thru.
- SonicGuard overload protection.
- 200 mm (8") Kevlar cone woofer, 25 mm (1") titanium diaphragm compression driver.
- Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
- Sealed input panel cover and screw-down input terminals.
- Frequency Range (-10 dB): 40Hz to 19kHz
- Frequency Response (+/- 3 dB): 45Hz to 18kHz
- 100 Hr Power Capacity: 300 Watts Continuous Program Power
- 150 Watts Continuous Pink Noise
- Maximum SPL @ 1m: Short-Term: 120 dB; Long-Term: 114 dB
- Nominal Sensitivity: 91 dB, 1W @ 1 m (3.3 ft)
- Nominal Coverage Angle: 110-degree H x 85-degree V, rotatable
- Directivity Factor (Q): 7.2, averaged 500Hz to 16kHz
- Directivity Index (DI): 8.6dB, averaged 500Hz to 16kHz
- Nominal Impedance: 8 ohms
- Minimum Impedance: 6.3 ohms @ 230Hz
- Crossover Type: 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
- Transformer Taps: 70V: 110W, 55W, 28W & 14W; 100V: 110W, 55W, & 28W, Thru Position: 8 ohm nominal
SPECIFICATIONS
- Powered:No
- LF Driver Size:1 x 8"
- HF Driver Size:1 x 1"
- Power Rating (Program):300W
- Impedance:8 ohms
- Frequency Range:40Hz-19kHz (-10dB)
- Crossover Frequency:2.5kHz
- Maximum Peak SPL:118dB
- Horizontal Coverage Angle:110 Degrees
- Vertical Coverage Angle:85 Degrees
- Enclosure Material:High Impact Polystyrene
- Mounting Options:Wall Mount (hardware included), Suspended (optional U-bracket)
- Height:20.5"
- Width:12"
- Depth:10.9"
- Weight:26.8 lbs.
