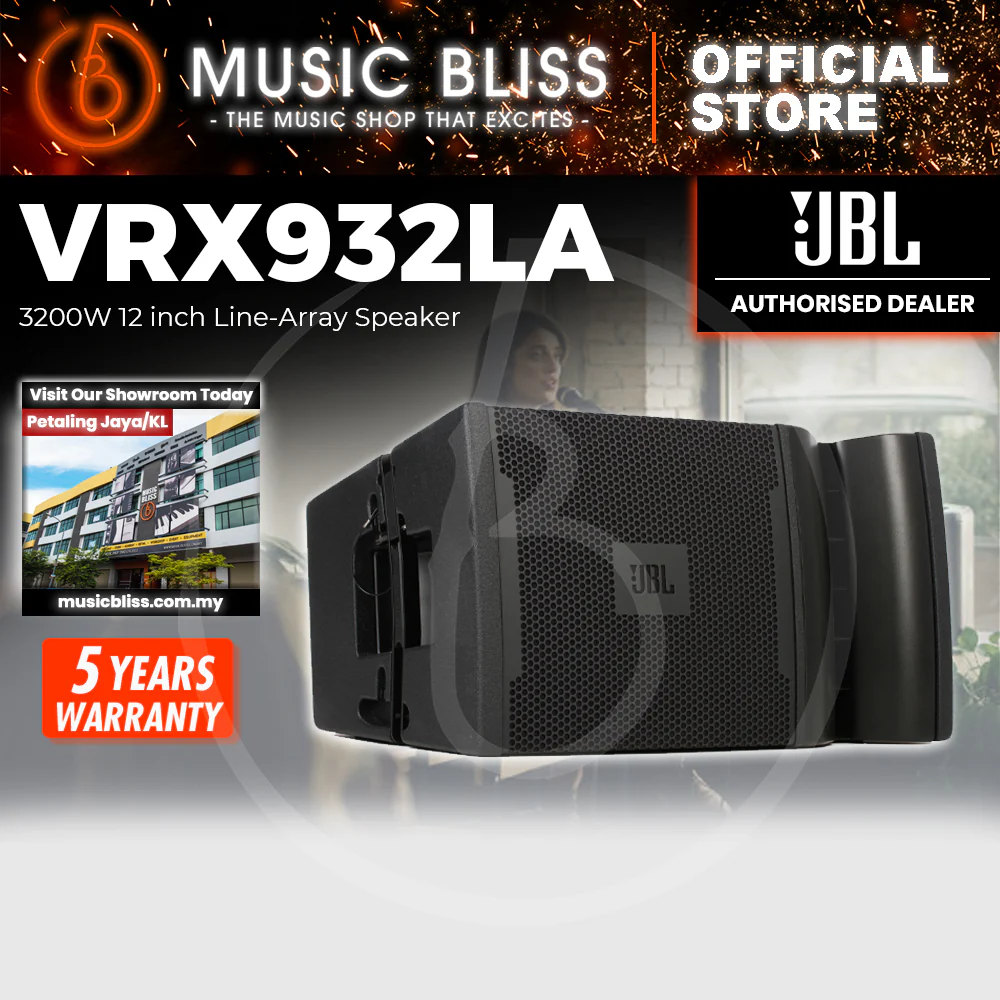

JBL VRX932LA 3200W 12 inch Line-Array Speaker - Black (VRX-932LA/VRX 932LA)
While intended for smaller venues than the VerTec series, the VRX932LA Constant Curvature Line Array is designed and built to the same high standards and uses the same advanced, concert-proven drivers. The VRX932LA delivers extraordinary power handling, clarity, flexibility and, of course, stunning JBL sound in an attractive, easy to handle and affordable package. The VRX932LA is a perfect fit for medium-sized venues that don't want to sacrifice sound quality just because they're not as big as other professional facilities. For compact power, it's the VRX932LA.
FEATURES
- Frequency Range (-10dB)1: 57Hz - 20kHz
- Frequency Response (+/-3dB)1: 75Hz - 20kHz
- Coverage Pattern: 100 x 15 nominal
- Crossover Modes: Bi-amp / passive, externally switchable
- Crossover Frequency: 1.2kHz
- Power Rating Passive: 800 W / 1600 W / 3200 W (Continuous/Program/Peak)2: Bi-amp LF: 800 W / 1600 W / 3200 W
- Bi-amp HF: 75 W / 150 W / 300 W
- LF Driver: 1 x JBL 2262H 12 in Differential Drive woofer with neodymium-magnet, dual voice-coils and magnetic gap.
- HF Driver: 3 x JBL 2407J, 1.0 in voice-coil, neodymium compression driver
- Nominal Impedance: Passive: 8 ohm
- Bi-amp LF: 8 ohms
- Bi-amp HF: 8 ohms
- Active Tunings: Tunings available at www.jblpro.com
- Enclosure: 18 mm, 11-ply birch plywood.
- Suspension / Mounting: Optional VRX-AF line array frame kit; M-10 Eyebolt Kit
- Finish: Black DuraFlex finish
- Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
- Input Connectors: Neutrik Speakon NL-4 (x2)
- Dimensions (H x W x D): 13.75 in x 23.5 in x 15.0 in
- Net Weight: 48 lb
SPECIFICATIONS
- Powered:No
- LF Driver Size:1 x 12"
- HF Driver Size:1"
- Power Rating (Program):1600W
- Peak Power Capacity:3200W
- Impedance:8 ohms
- Inputs:2 x Speakon
- Frequency Range:57Hz-20kHz
- Crossover Frequency:1.2kHz
- Maximum Peak SPL:130dB
- Horizontal Coverage Angle:100 Degrees
- Vertical Coverage Angle:15 Degrees
- Enclosure Material:Ply
- Mounting Options:Pole Mount with dual 1.41" socket, Fly Mount (optional hardware required)
- Height:13.5"
- Width:23.5"
- Depth:14.8"
- Weight:48 lbs.
FAQ
Is warranty coverage available for my product?
Yes! Majority of our product provides a minimum 1 year warranty on the electronic parts.
Can I test the product prior to my purchase?
Definitely! You can contact our sales team through 011-6862 1286 or head over to Music Bliss showroom to view the item before buying it. We are honored to have you over!
How long will it take to deliver?
It usually takes only 3-7 working days for the item to be safely delivered to your doorstep. Self-collection and Lalamove (local delivery) is available as well!
Can I self-collect my item(s)?
Of course! You can head over to Music Bliss showroom for self-collection during our working hours.
10am - 7.30pm (Mon - Thurs)
10am - 7pm (Fri - Sat)
10am - 6pm (Sun)
Can I use Lalamove / Grab / Same Day Delivery as a delivery option?
Yes! Please note that the delivery hour for Lalamove service is only available for local delivery, from 11am to 5pm daily. For delivery ,please check out choosing Lalamove/Grab service or contact the mainline 011-6862 1286.
