Rode RODECaster Video Core A/V Production Console

Rode RODECaster Video Core A/V Production Console

---

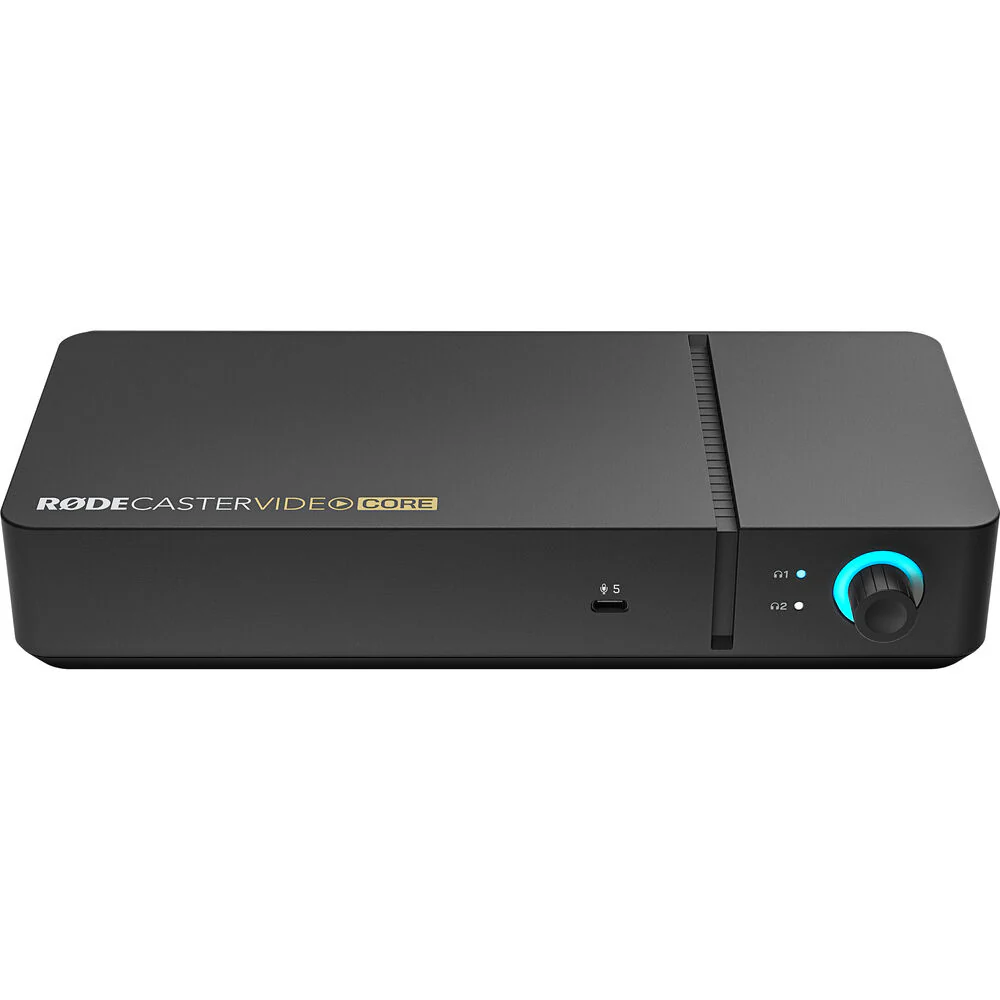

The RODECaster Video Core is a streamlined take on RODE’s larger A/V production console, offering the same powerful video switching, recording, and production tools in a sleeker, user-friendly package. Designed for software control via the RODECaster App or modular usage alongside the RODECaster Sync and RODECaster Pro II or Duo, its intuitive layout supports up to four Full HD video sources through three 1080p HDMI inputs and a versatile multifunction USB-C port for webcams and audio connections. To the delight of Music Bliss A/V engineers, audio is handled by a studio-grade APHEX processor with a slew of effects, including EQ, noise gates, filters, and more, along with a pair of Neutrik XLR combo jacks and two integrated RODE Series IV receivers for supported wireless mics. With ISO recording to external USB storage, Wi-Fi and Ethernet streaming, and intelligent autoswitching based on audio input, the RODECaster Video Core is an indispensable tool for optimizing any production’s workflow.

IN THE BOX:
- 1 x RODE RODECaster Video Core
- 1 x SuperSpeed USB-C Cable
- 1 x Power Supply

---

FEATURES

• Video switcher, audio mixer, and recording/streaming console for professional productions

• Operate via software control using the RODECaster App, or use it as part of a modular system with RODECaster Sync plus RODECaster Pro II or Duo

• Switch between 4 video sources using 3 Full HD HDMI inputs and a multifunction USB-C port

• Configurable HDMI output for preview, program, or multiview display

• Create up to 5 customizable scenes with layered video sources, graphic overlays, and media playback using automatic chroma keying
  High-performance octa-core CPU for advanced video and audio

• APHEX audio processor delivers a host of FX

• 2 Neutrik XLR combo jacks with ultra-low noise Revolution Preamps for microphones and instruments

• 2 internal RODE Series IV wireless receivers for compatible wireless microphones

---

SPECIFICATIONS

• Type : RØDECaster Video Core A/V Production Console

• Channels : 4 x Video, 2 x Analog Audio, 5 x Digital Audio

• Video Format : 1080/60fps

• Video Inputs : 3 x HDMI 1.4b (type A)

• Video Outputs : 1 x HDMI 1.4b (type A)

• Audio Inputs : 2 x XLR-1/4" Combos

• Headphones : 2 x 1/4" TRS (rear)

• USB : 2 x USB-C (mic), 2 x USB-C (computer), 1 x USB-C (UVC)

• Other I/O : 1 x RJ-45 (10/100/1000BaseT)

• Effects : APHEX VoxLab Audio Processing

• Software : RØDECaster App

• Power Source : 45W/20V/2.25A USB Powered

• Height : 1.79"

• Width : 9.4"

• Depth : 4.92"

• Weight : 1.55 lbs

---
