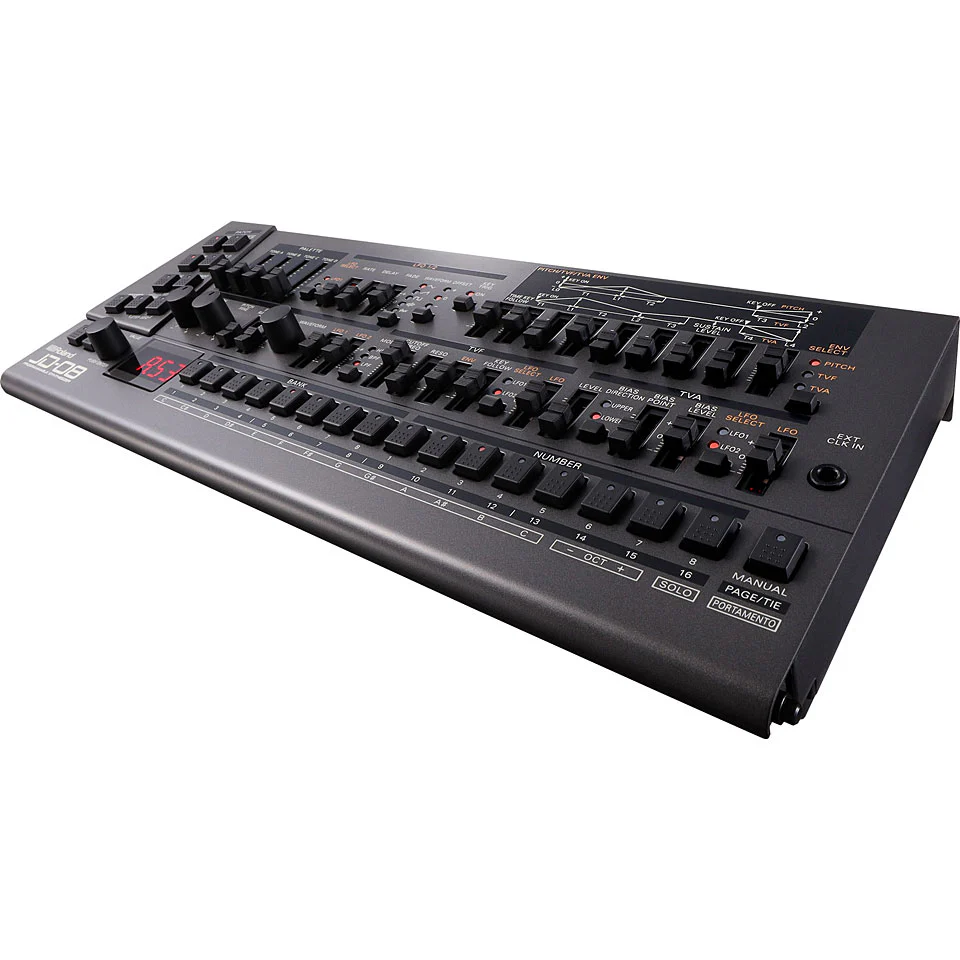

Roland JD-08 Boutique Series JD-800 Sound Module

Roland JD-08 Boutique Series JD-800 Sound Module (JD08 / JD 08)

---

The Roland JD-08 Boutique Series sound module delivers the authentic sound of the venerable JD-800, a synth beloved by producers for its ability to craft epic layered sounds. All 64 original presets are included (even that Wailing Guitar), plus 21 new presets to showcase the JD-08’s modern potential. Just like the original, the JD-08 offers four sound layers you can combine however you see fit, making it perfect for crafting punchy basses, complex leads, and evocative pads. In all, you have 108 original JD-800 waveforms, seven effects types, and a 2-part 64-step polyphonic sequencer to bring your creativity to life. Whether you’re looking for authentic ’90s sounds or a powerful synth to create your new signature sound, you’ll sure to meet your match with the Roland JD-08 Boutique Series sound module.

---

FEATURES

• Re-creation of the classic JD-800 synthesizer
• Includes all 108 original waveforms and all 64 original factory patches, plus 21 new presets
• 4-part tone layering encourages complex sound design techniques
• 2-part, 64-step polyphonic sequencer allows you to save up to 128 original patterns
• Random pattern generator provides instant inspiration
• Motion recorder allows you to capture complex parameter changes in your patterns
• Onboard arpeggiator
• Dual LFOs with Saw, Triangle, Square, Random, and Noise waveforms
• Filter section offers LPF, BPF, and HPF modes
• Huge effects potential with 2-stage multi-effects section and distortion, phaser, spectrum, enhancer, delay, chorus, and reverb
• Multi-phase time-variant envelopes encourage complex, evolving sounds
• Palette sliders for fast parameter tweaks to any sound layer
• USB-C audio/MIDI interface, full-size MIDI I/O, and external clock input
• Powered via 4 AA batteries or USB
• Built-in mini speaker — no amp or headphones required
• Tough metal panels and robust metal-shafted sliders

---

SPECIFICATIONS

• Type:Desktop Synthesizer and Sequencer
• Analog/Digital:Digital
• Pads:16 x Multi-function buttons
• Polyphony:128 notes (dependent on patch load)
• Presets:64 x Original JD-800 Presets, 21 x Factory, 171 x User
• Oscillators:4 x Tone Palettes
• Waveforms:108 x Waveforms
• Envelope Generator:Multi-phase Time-variant Envelope
• LFO:2 x LFO (triangle, sawtooth, square, pulse, noise)
• Filter:Multimode Lowpass/Bandpass/Highpass
• Effects Types:Distortion, Phaser, Spectrum, Enhancer, Delay, Chorus, Reverb
• Arpeggiator:Yes
• Sequencer:2-part, 8-note per part, 64-step, 128 patterns
• Analog Inputs:1 x 1/8" (mix in)
• Analog Outputs:1 x 1/8"
• Headphones:1 x 1/8"
• MIDI I/O:In/Out/USB
• Other I/O:1 x 1/8" (clock in)
• USB:1 x USB-C
• Power Supply:USB bus power / 4 x AA batteries
• Height:1.93"
• Width:11.81"
• Depth:5.06"
• Weight:1.87 lbs.

---
