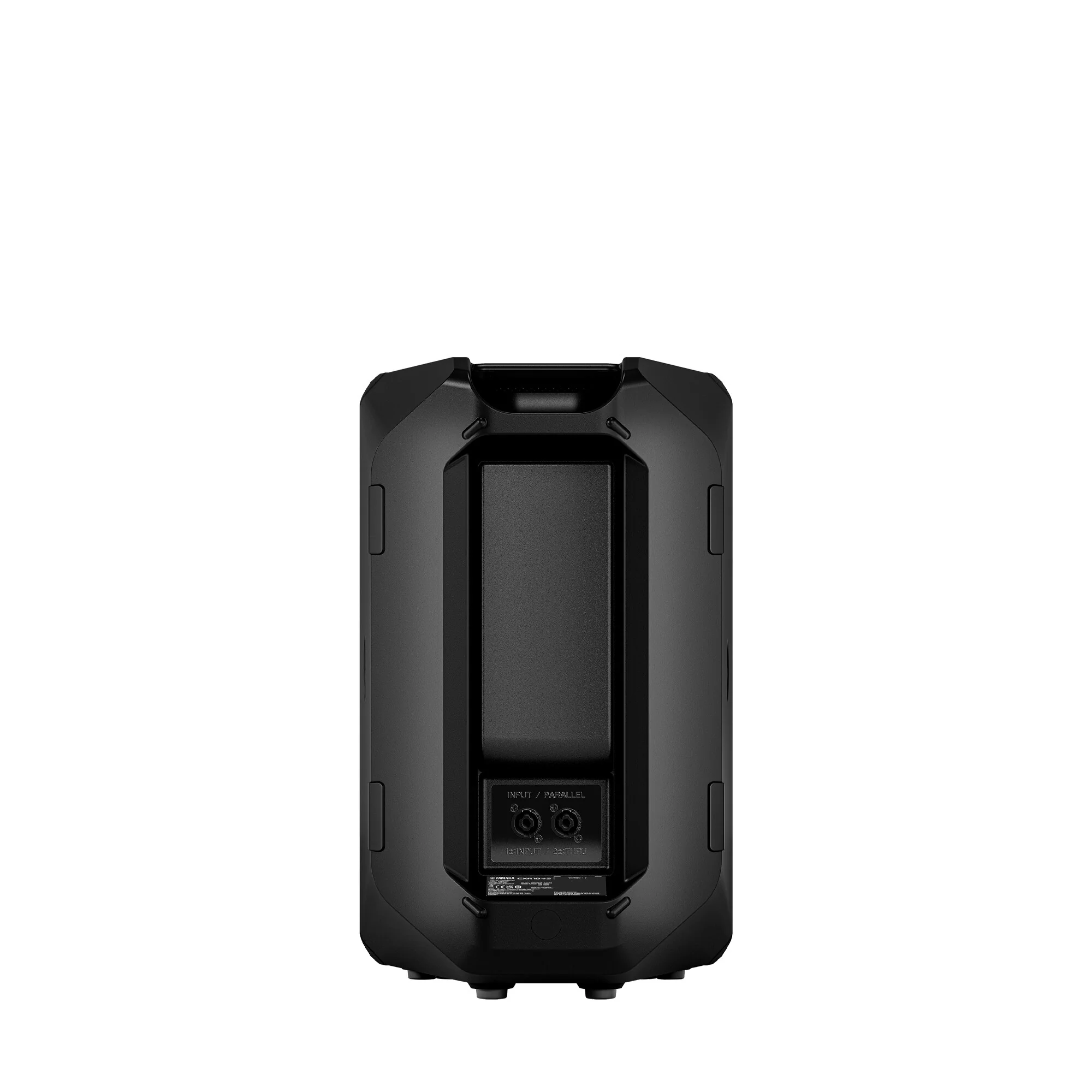

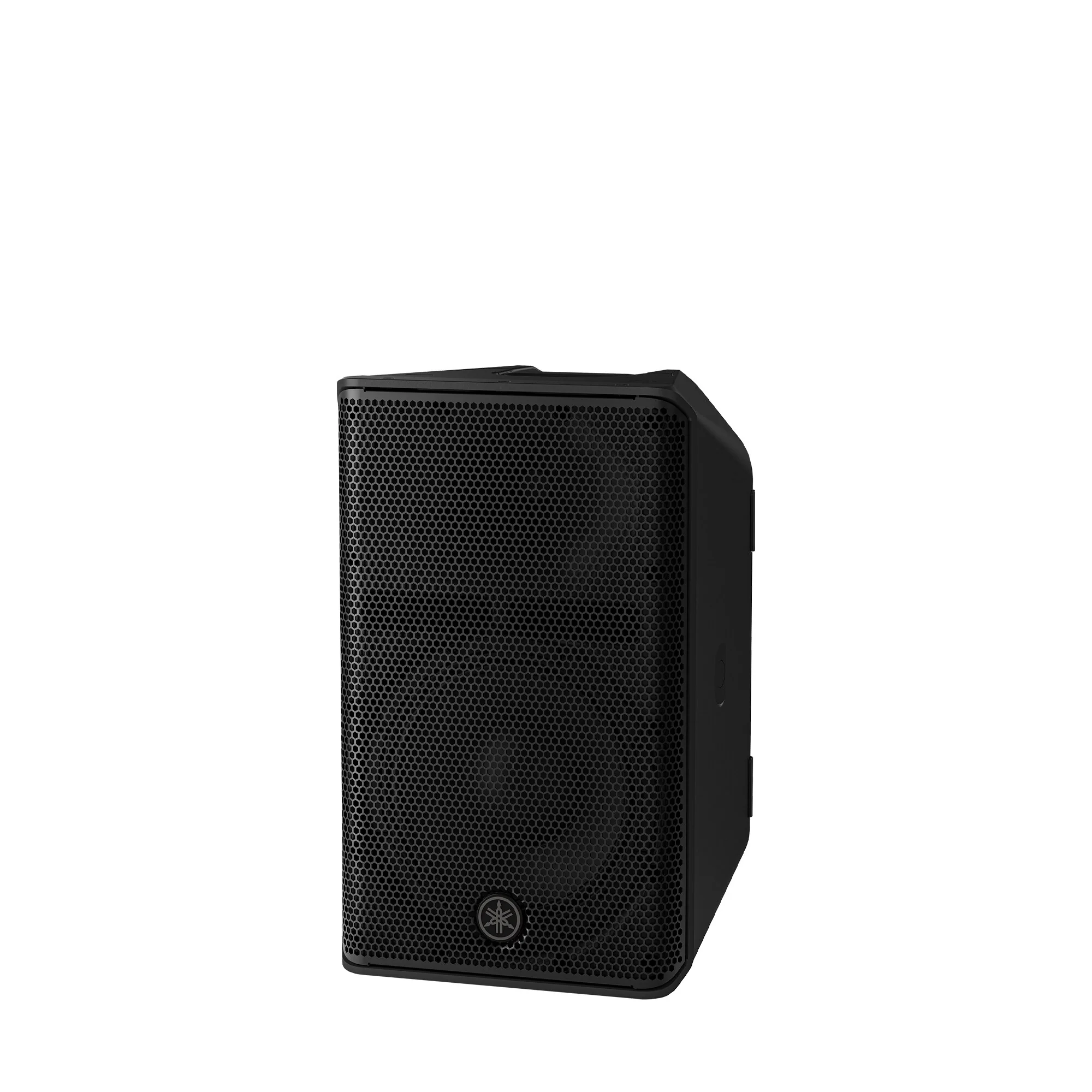

Yamaha CXR10 MK3 10" 1100-watt Passive Loudspeakers

Yamaha CXR10 MK3 10" 1100-watt Passive Loudspeakers

---

The CXR10 mk3 is a 2-way loudspeaker and the most compact model of the series, capable of exceptional clarity, precision, and powerful sound output. Thanks to its compact enclosure, it can function as a versatile utility speaker suitable for a wide variety of sound reinforcement environments.

---

FEATURES

• 10" LF + 1.75" HF proprietary high-durability speaker units

• The large-diameter horn secures directivity control across a wide frequency range

• Optimized port positioning reduces standing wave effects

• Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design

• Optional UB-DXRDHR10A U-bracket allows both for vertical or horizontal use

• Optional SPCVR-DXR103 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances

• Rigging points for use with eye bolts

• Dual-angle pole sockets offer both 0° or a -7° down tilt

---

SPECIFICATIONS

• Speaker type : 2-way Speaker, Bass-reflex

• Frequency range (-10dB) :  54 Hz - 20 kHz

• Coverage area : H90ﾟ x V60ﾟ

• Crossover : 2.0 kHz

• Nominal impedance :     8 Ω

• SPL :  Sensitivity (1W; 1m on axis) : 93 dB SPL

• SPL : Peak (Calculated) : 123 dB SPL

• Components : LF : Diameter: 10" cone, Voice Coil: 2.5"

• Components : HF : Diaphragm: 1.75", Type: 1" throat compression driver

• Power rating : NOISE : 275 W

• Power rating : PGM : 550 W

• Power rating : PEAK : 1100 W

• I/O connectors :  SpeakON NL4MP x 2 (parallel connected)

• Cabinet material : Plastic (PP)

• Finish : Black

• Handle : Top x1

• Pole socket : Φ35 mm x 2 (Bottom, 0° or -7°)

• Rigging : Top x 2, Rear x 1 (Fit for M8 x 15 mm Eyebolts), Bottom x 2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR10A)

• Net weight : 12.2 kg (26.9 lbs)

---
