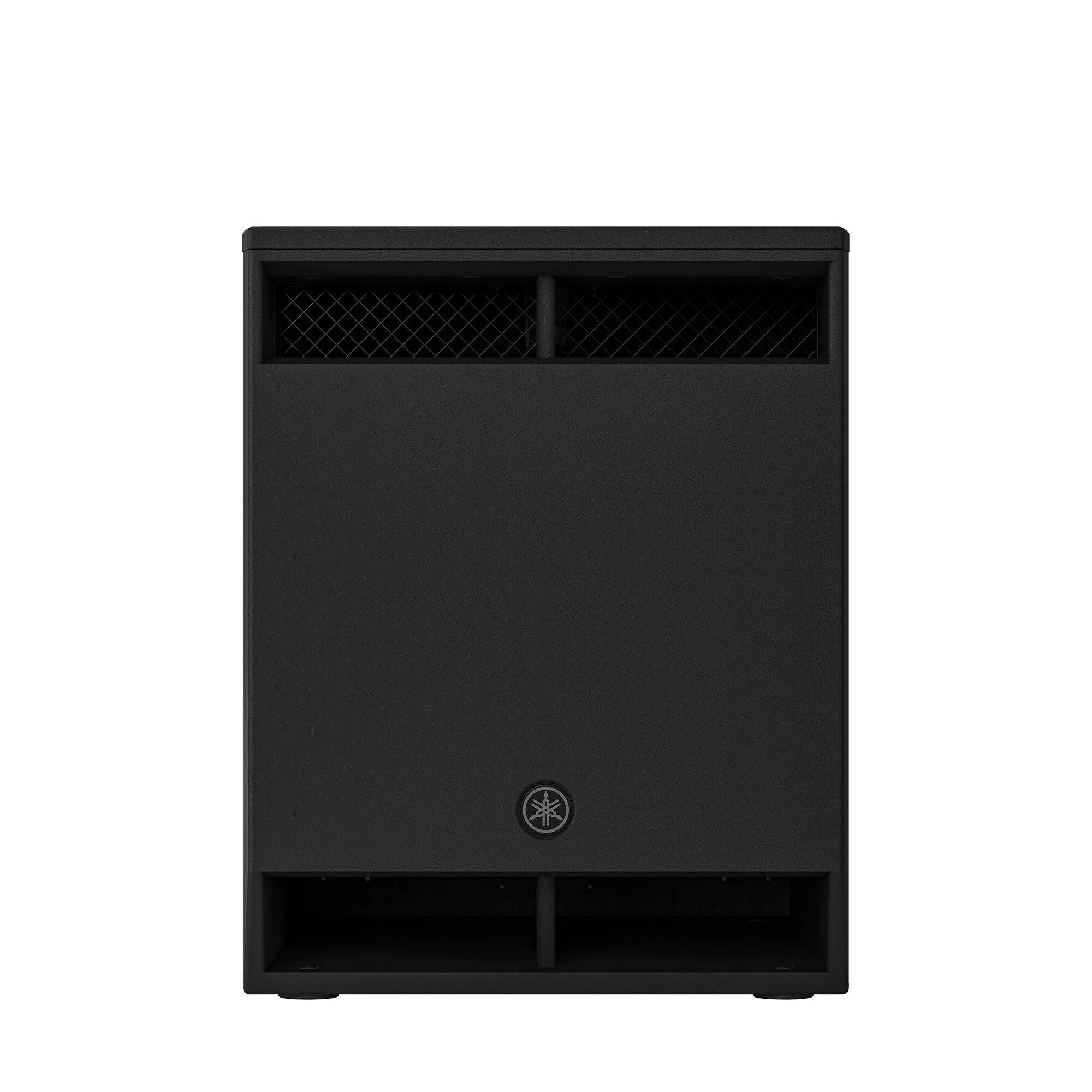

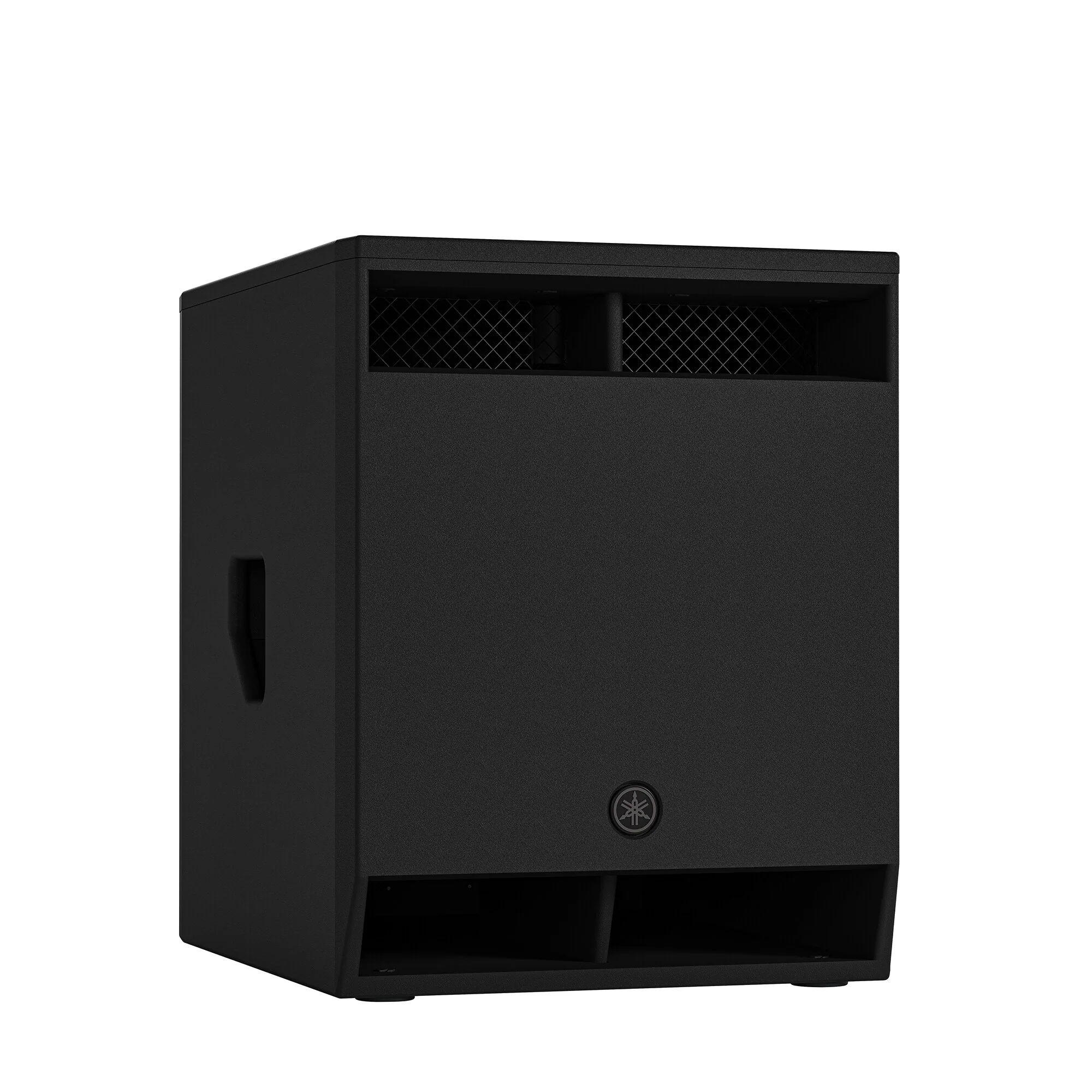

Yamaha CXS15 MK3 15" 1300-watt Passive Subwoofer

Yamaha CXS15 MK3 15" 1300-watt Passive Subwoofer

---

The CXS15 mk3 is the mid-size model of Yamaha’s latest generation of passive subwoofers that delivers deep, clear, and remarkably powerful, ultra-low bass thanks to our proprietary high-durability transducers, and an ideal bandpass structure that eliminates unwanted cabinet noise. When paired with our perfectly matched CXR mk3 series loudspeakers in particular, the CXS15 mk3 enables users to build a seamlessly integrated sound system with unparalleled impact.

---

FEATURES

• 15" Cone 3" Voice coil proprietary high-durability speaker unit

• Plywood cabinet is durable and acoustically optimized for maximum sound quality

• M20 and Ø35 mm dual pole sockets

• Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS153)

---

SPECIFICATIONS

• Speaker type :     Subwoofer, Band-pass

• Frequency range (-10dB) : Passive: 40 Hz - 180 Hz, Extend (*1): 35 Hz - 140 Hz

• Nominal impedance : 4 Ω

• SPL :  Sensitivity (1W; 1m on axis) : 95 dB SPL *2

• SPL : Peak (Calculated) : 126 dB SPL *2

• Components : LF : Diameter: 15" cone, Voice Coil: 3"

• Power rating : NOISE :     325 W

• Power rating : PGM : 650 W

• Power rating : PEAK : 1300 W

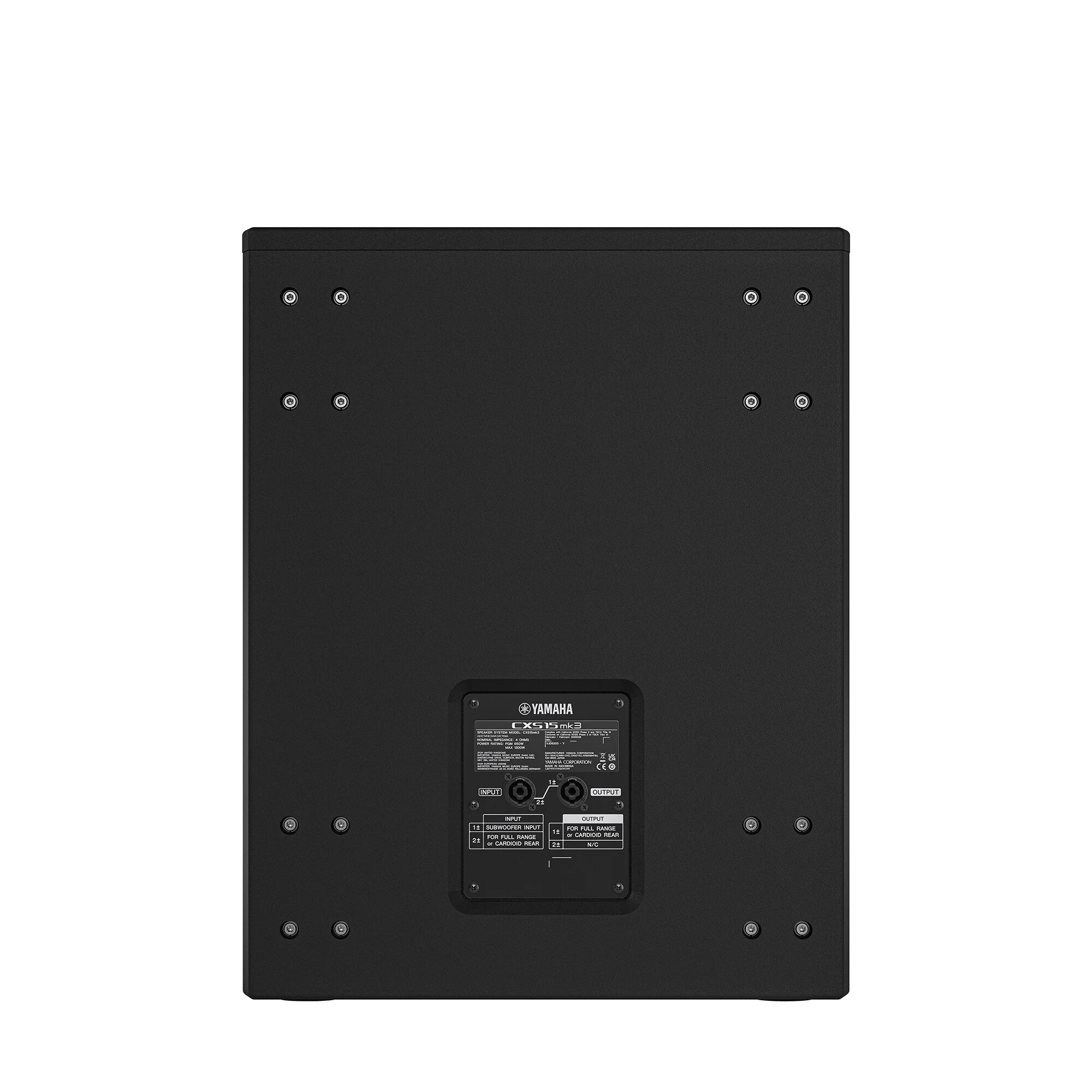

• I/O connectors :  speakON NL4MP × 2 (Input × 1, Output × 1)

• Cabinet material : Plywood

• Finish : Durable Polyurea Painting, Black

• Handle : Side x 2

• Pole socket : Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)

• Net weight : 35.0 kg (77.2 lbs)

---
